HIKER-4B
AEREA MorphWing-4B Man-Portable UAV

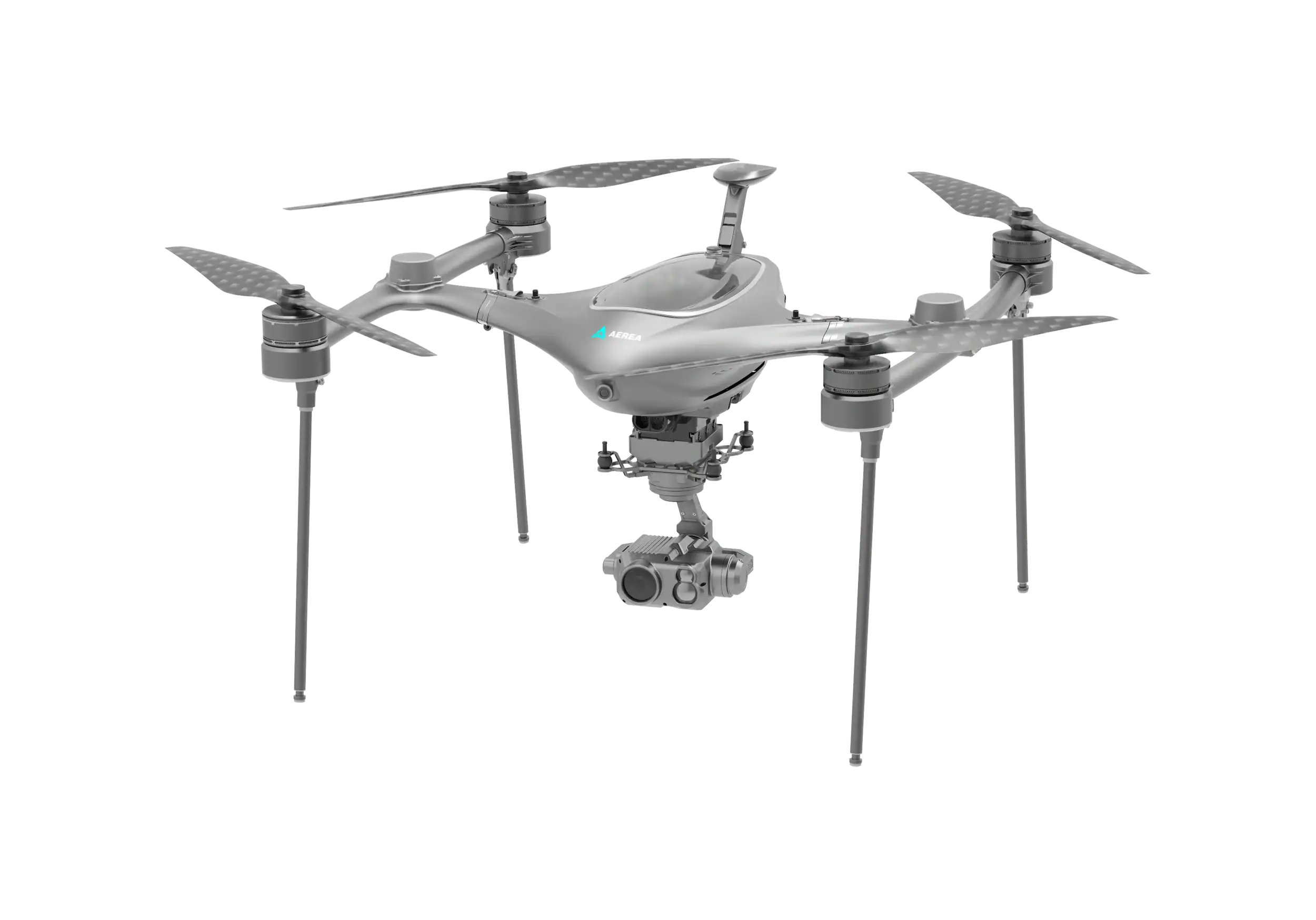

AEREA Hiker-4B Small Reconnaissance UAV
Applicable Payload Type: Reconnaissance and surveying
AEREA Professional Tactical-Class UAV
The AEREA Hiker – 4B small reconnaissance unmanned aerial vehicle adopts a quadcopter structure for flight power and a folding structure for the fuselage, with application functions such as reconnaissance and surveying.
It can carry visible light, infrared, night vision, laser ranging and other visual task payloads, obtain high – definition image information from a long distance, perform patrol tasks, and has the ability to identify, lock and track.
5 – LENS Tactical Mapping Camera can be mounted for geographic information data collection, 3D modeling, and realistic restoration of terrain and landforms.
The model supports single machine or cluster operation in various complex terrains
| Basic Parameters | |
| Product Name | AEREA Hiker-4B Small Reconnaissance UAV |
| Product Model | Hiker-4B |
| Dimensions (mm including propeller) | 1196*1196*521mm |
| Maximum Takeoff Weight | 10kg |
| Maximum Load Capacity | 2kg |
| Number of Onboard Batteries | 1 |
| Maximum Endurance | 40min |
| Maximum Horizontal Flight Speed | 18m/s |
| Maximum Communication Distance | 10km |
| Wind Resistance | Level 6 |
| Positioning Accuracy | Horizontal ± 0.02 meters, vertical ± 0.05 meters |
RS-3SLW

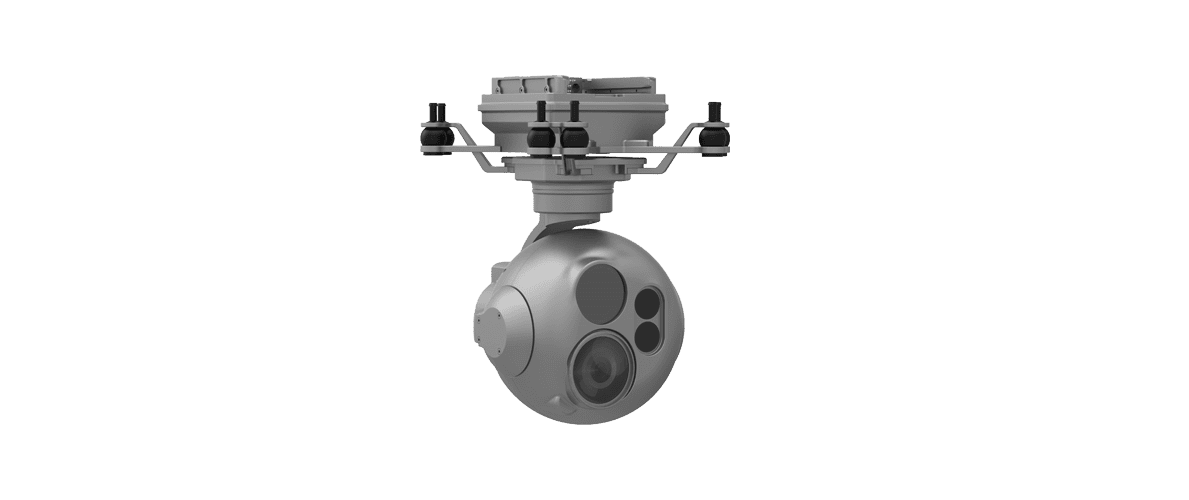

Lightweight Triple Light Intelligent Gimbal
GM-5LOC
5-LENS Tactical MappingCamera
