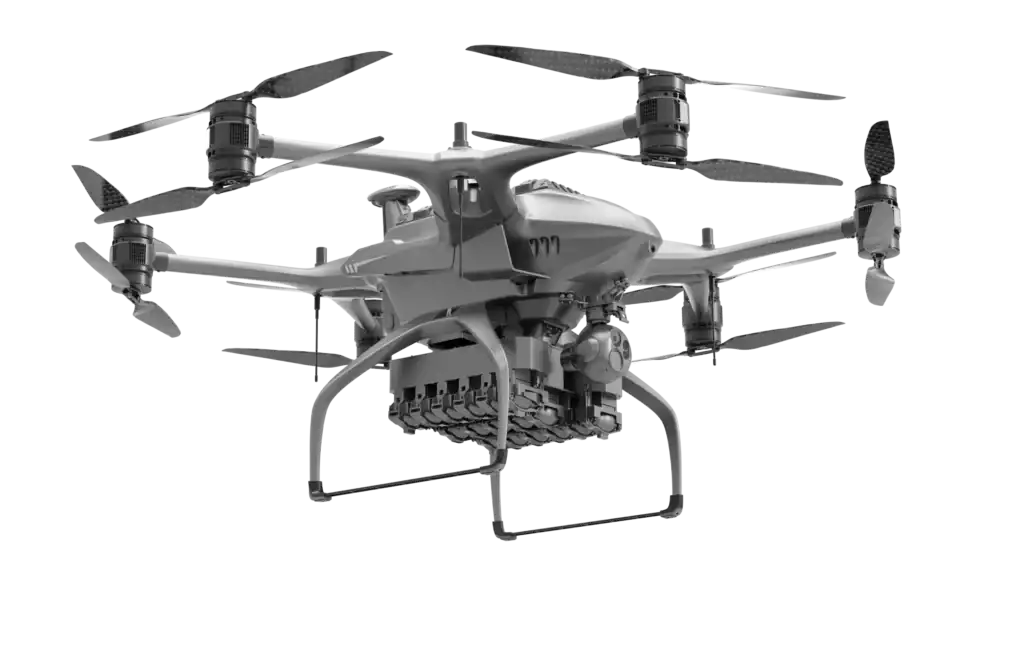

HAMMER 6R-12B
AEREA Hammer 6R-12B UAV Ultra Payloads
ADVANCED RECONNAISSANCE &STRIKE UAV
Applicable Payload Type: Integrated striking and reconnaissance

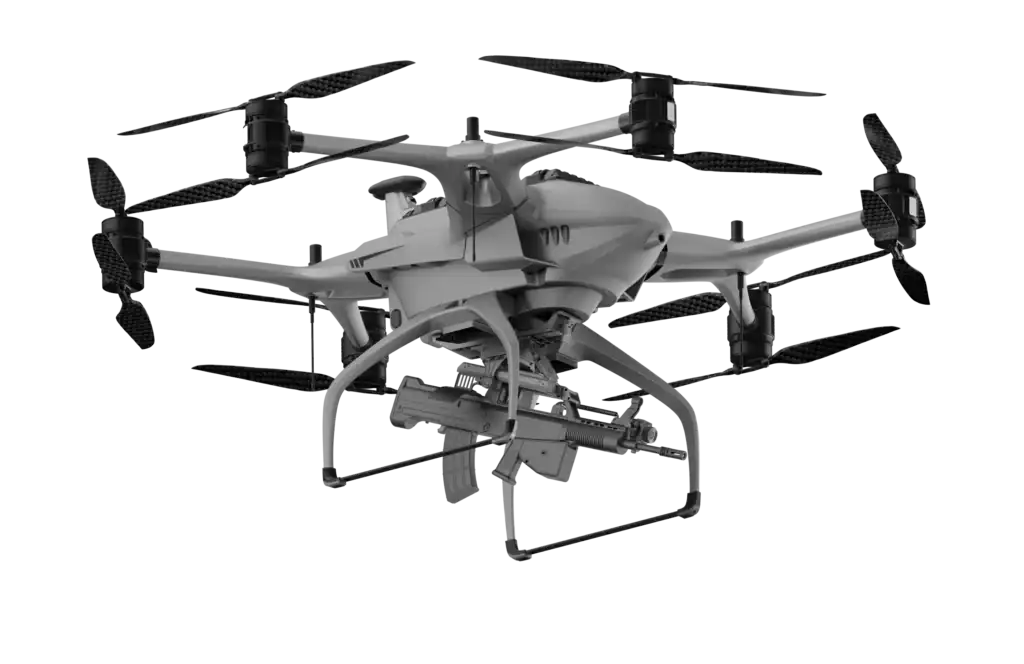

Payload Example: Type 191 rifle
| High | High quality, high performance, high adaptability |
| Quick | Quick to (dis)assemble, quick to start, quick to function |
| Stable | Multiple safety measures, testing, quality inspection and certification |
| Accurate | High quality sensor, cm level positioning, precise striking |
| Multiple Payloads Per UAV | Simultaneously mounting multiple mission payloads in a single UAV |
| Multiple UAV in One Load | Modular quick release interface compatible with multiple UAVs |
AEREA Hammer 6R-12B UAV Ultra Payloads
Applicable Payload Type: Integrated striking and reconnaissance
♦ 20KG heavy load
♦ 50 minute long flight time
♦ Quickly dismantle and assemble, take off in 2 minutes
♦ Multi tasking integration of inspection and combat
♦ More than 40 types of loads with multiple applications
♦ Capable of flying in all weather
♦ Support various complex terrains
♦ Single machine or cluster job
Product Introduction
The world’s first 720°full perception observation and combat integrated UAV–the Hammer 6R-12B UAV, is hailed as the “King of payloads” in the industry. Designed for 6-axis 12 rotor full sensing, the fuselage adopts a plug-in wireless connection structure, allowing for quick assembly and takeoff in 2 minutes.
The whole vehicle is equipped with three plug-in quick release interfaces,which can simultaneously mount three types of payload equipment. The combination of reconnaissance and strike modules realizes tactical level reconnaissance and strike integrated tasks.
The model supports single vehicle or cluster operations in various complex terrains.
Multiple reconnaissance payloads can be mounted: composed of diverse combinations of visible light, infrared, night vision, laser ranging and other visual task modules, achieving day and night/ long-distance, high-definition acquisition of image information, with AI recognition , targeting and tracking capabilities.
Support simultaneous loading of strike payloads: grenades, rifles, rockets, mortar shells, small visual guided missiles, as well as tear gas, shock bombs, smoke bombs, dye bombs, etc.. This is how we conduct “integrated striking and reconnaissance”.
| Basic Parameters | |
| Product Name | Aerea Hammer 6R – 12B |
| Product Model | Hammer 6R – 12B |
| Dimensions (mm including propeller) | 2195*2415*900mm |
| Maximum Takeoff Weight | 53kg |
| Maximum Load Capacity | 22kg |
| Number of Onboard Batteries | 2 |
| Maximum Endurance | 50 (empty load) / 20 (full load) |
| Maximum Horizontal Flight Speed | 18m/s |
| Maximum Communication Distance | 15km |
| Wind Resistance | Level 7 |
| Positioning Accuracy | Horizontal ± 0.02 meters, vertical ± 0.05 meters |
6R-12B AEREA Hammer 6R-12B UAV Ultra Payloads
Features
- Quick disassembly interface installation
- Adapt to the Chinese standard AB2 aviation bomb
- Vertical throwing
- High accuracy video targeting
Convenient
- Single shot sequential throwing Manual
- filling for quick reloading Minimum
- throwing height 2: 300 meters
Stablize
- Photography and video recording functions
- Real time transmission of high-definition video images
- Ground station remote contrlo
- Coordinate fixed-point hovering
AEREA Hammer 6R-12B UAV Ultra Payloads
SD-MD8
8-unit High Capacity Precision Mortar Payload
Supported models: Hammer series
Loading quantity: 8 pieces
Visible light parameters: 1080P
Laser ranging: ≥ 1 km
SD-MD4
High Capacity Precision Mortar Payload
Weight: 3.6 kg
Dimensions: 400 mm x 396 mm x 182 mm
Supported models: Hammer series
Stabilization System: 3-axis gimbal
Mounting System: Quick-release interface
Optical Parameters: 10x optical zoom, 1080P resolution
Laser Rangefinder Distance: 1.5 km
Ammunition Capacity: 4 rounds
SD-MDA2
Dual-barrel Tactical Mortar Payload
Supported models: Hammer series/MorphWing-6R
Stabilization system: 3-axis gimbal
Weight: 2.6KG
Dimensions: 482mm• 250mm• 205mm
Ammunition Capacity: 2 rounds
Infrared: Resolution 640• 512. focal length 25mm
Visible light parameters: 10x optical zoom 1080P
Laser ranging: ≥1 km
Stable system: Two axis
Installation method: quick release interface
Visible light: 1 Ox optical zoom 1080P high-definition image real-time feedback
Laser ranging, “‘1 km
Compatible ammunition type: Chinese standard 161 type
Loading method: manual loading
Delivery method: G『ound station remote control and high-definition video
observation. coordinate fixed-point hovering, single/group vertical throwing
Minimum throwing height 50-70m
SD-GDT-17
17 161 Crenade Tracking and Throwing Systems
Supported models: Hammer series
Loading quantity: ≤ 17 pieces
SD-CDT-6
6 161 Crenade Tracking and Throwing System
Supported models: Hammer series/MorphWing-6R
Product weight: 4KG
Product size: 330mm*278mm*199mm
Loading quantity: ≤ 6 pieces
SD-CDT-4
4 161 C.renade Tracking and Throwing Systems
Supported models: Hammer series/MorphWing series
Product size: 330mm*278mm*199mm
Loading quantity: ≤ 4 pieces
RECON PAYLOAD
RS-3SMD
Triple Lights Multifunctional Intelligent Ciimbal
Supported UAV Models: a. Hammer Series/ MorphWing-6R / Hiker-882; b. Customizable for MorphWing-4R with mechanical interface modifications
Visible Light: Optical Zoom: 30x; Resolution: 1080P HD
Laser Rangefinder: Max Range: 5 km
AI System Features: Utilizes a pre-established image database for AI-powered target identification and tracking; Capabilities include searching, recognizing, tracking, and precise geolocation of targets
RS-Al30
Long-Range Al Zoom Cimbal
Supported models: a. Hammer series/MorphWing-6R/Hiker-8B series; b. Customizable MorphWing-4R mechanical interface
Visible light: a. Optical zoom: 30x; b. Resolution: 1080P
Range: ≥ 1.5KM
AI system: capable of AI intelligent recognition and tracking of targets; Capable of searching, identifying, tracking, and locating functions
RT-3SAI
Triple Lights Infrared Al Ciimbal
Supported models: Hammer series/Morphing series/Hiker-8B
Stable system: 3-axis
Installation method: quick release interface
Visible light: 30x optical zoom 1080P
Infrared thermal imaging: resolution 640 × 512, focal length 50mm
Distance measurement: ~ 5KM
AI system: capable of AI intelligent recognition and tracking of targets: Capable of searching, identifying, tracking, and locating;
RS-3SLW
Lightweight Triple Lights Intelligent Ciimbal
Supported models: a, Hammer series//MorphWing-6R/Hiker-8B; b, Customizable MorphWing-4R mechanical interface
Stable system: 3-axis
Visible light: 10x optical zoom 1080P
Infrared thermal imaging: resolution 640 • 512, focal length 25mm
Distance measurement: ≥1KM
AI system: capable of AI intelligent recognition and tracking of targets; Capable of searching, identifying, tracking, and locating functions
RS-2SIV
AEREA Binocular Imaging Cimbal
Supported models: a. Hammer series/MorphWing-6R/Hiker-8B series; b. Customizable MorphWing-4R mechanical interface
Stable system: 3-axis
Visible light: a. Optical zoom: 30x; b. Resolution: 1080P
Infrared thermography: a. Resolution: 640 • 512; b. Focal length: 50mm
AI system: capable of AI intelligent recognition and tracking of targets; Capable of searching, identifying, tracking, and locating functions
RS-3SAIX
Triple Lights High-energy Infrared Al Cimbal
Supported models: Hammer series/Morphwing series/hiker-8B
Stable system: 3-axis
Installation method: quick release interface
Visible light: 30x optical zoom 1080P
Infrared thermal imaging: resolution 640 • 512, focal length 75mm
Distance measurement: ≥5KM
AI system: capable of AI intelligent recognition and tracking of targets; Capable of searching, identifying, tracking, and locating
RECON PAYLOAD

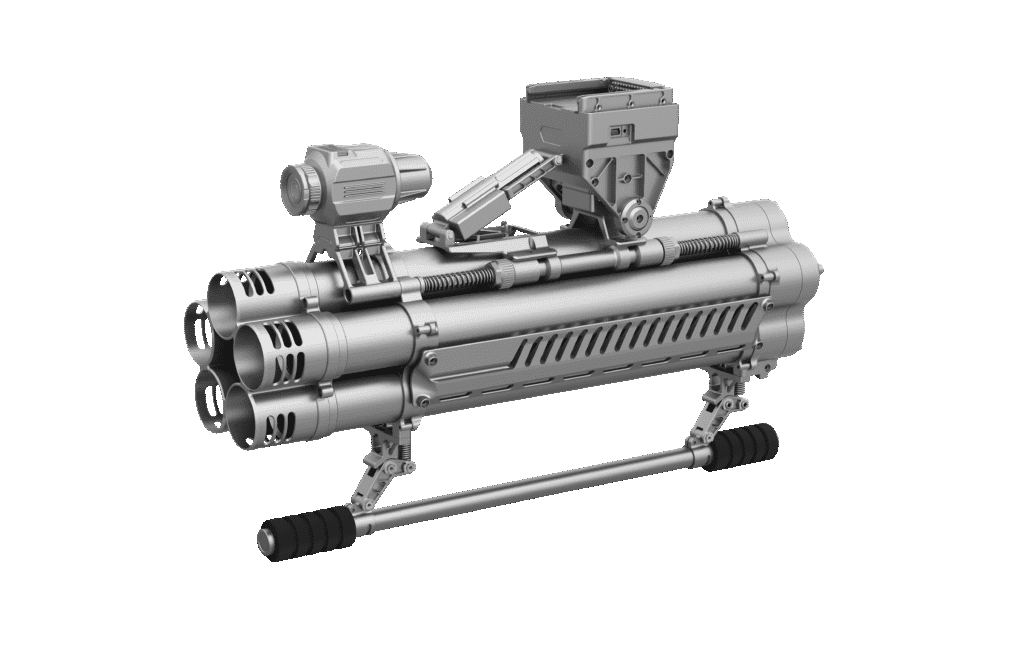

SD-SML2
Tactical Multimunition Launcher II
Supported models: Hammer series
Installation method: quick release interface
Number of loaded ammunition: 5
Caliber: 38mm
Ignition method: Electronic ignition
Camera: 1080P network high-definition camera
Applicable ammunition: tear gas, shock bombs, smoke bombs, dye bombs, etc

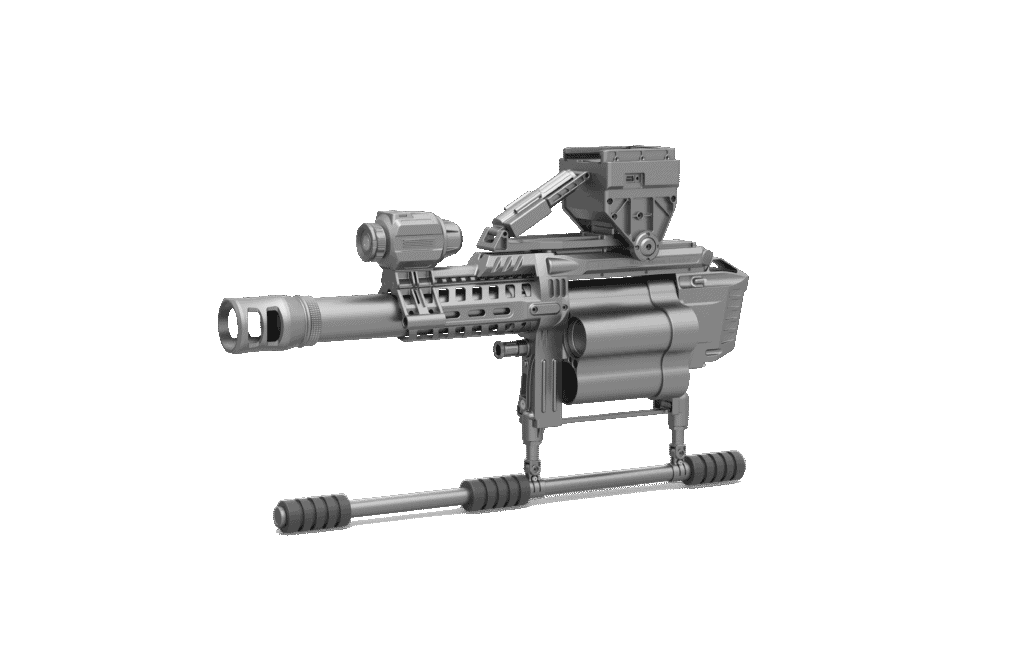

SD-SML
Tactical Multimunition Launcher
Supported models: Hammer series
Product weight: 3KG
Product size: 548mm • 124mm • 340mm
Installation method: quick release interface
Number of loaded ammunition: 5
Caliber: 38mm
Ignition method: Electronic ignition
Camera: 1080P network high-definition camera
Applicable ammunition: tear gas, shock bombs, smoke bombs, dye bombs, etc
SD-HAD6
High-altitude Projector System
Supported models: Hammer series/MorphWing-6R/Hiker-8B
Product weight: 1.8KG
Product size: 548mm • 124mm • 340mm
Installation method: quick release interface
Number of loaded ammunition: 6
Caliber: 38mm
Ignition method: Electronic ignition
Camera: 1080P network high-definition camera
Applicable ammunition: tear gas, shock bombs, smoke bombs, dye bombs, etc

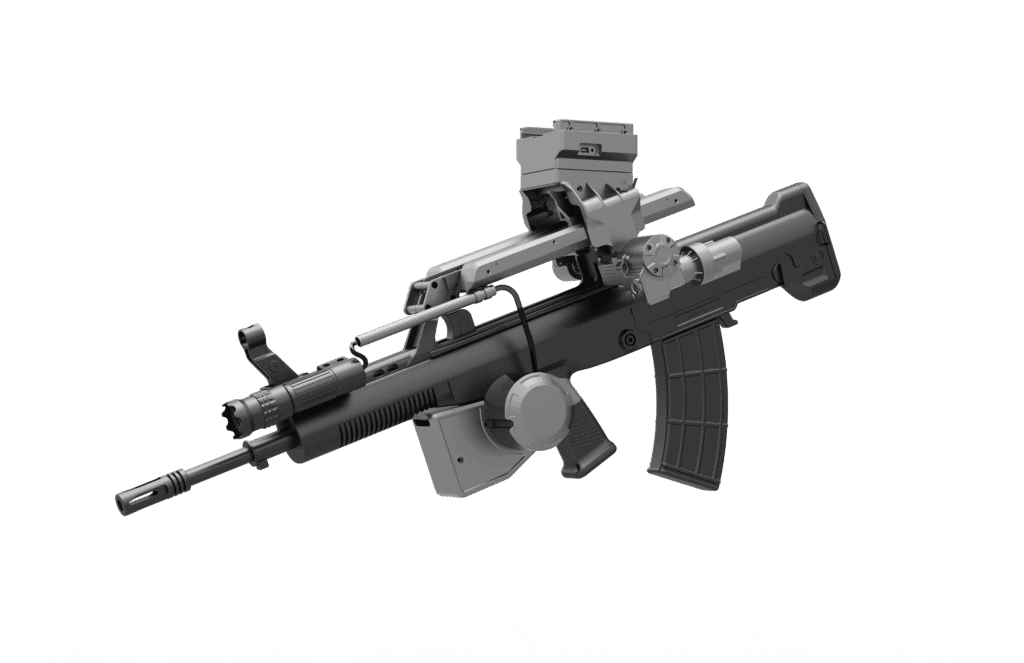

SD-RIFLEl /SD-RIFLE2
Rifle Rack Load
Supported models: Hammer series
Installation method: quick release interface
Compatible rifle types, rifle types are replaceable
Range: >400 meters
Visible light: zox optical zoom. resolution 1920 x 1080
Laser ranging: ~ 1 kilometer
Shooting methods, remote unlocking. single shot continuous shot; Equipped with automatic ammunition feeding and pitch adjustment
AI system: With the establishment of an image database of the target object. it has the function of AI intelligent recognition and tracking of the target; Capable of searching. identifying. tracking. and targeting functions
SD-ACN
Advanced Capture System
Supported Model:Hammer series
Mount Type: Quick-release interface
Camera: 1080P network HD camera
Effective Range: 15-20m
Net Size: 3m x 3m (1 unit)
Launch Method: Electronic control
Rangefinder Distance: 40m
Drive System: Cylinder-powered
Note: Only control payload provided: gas cylinder is not included

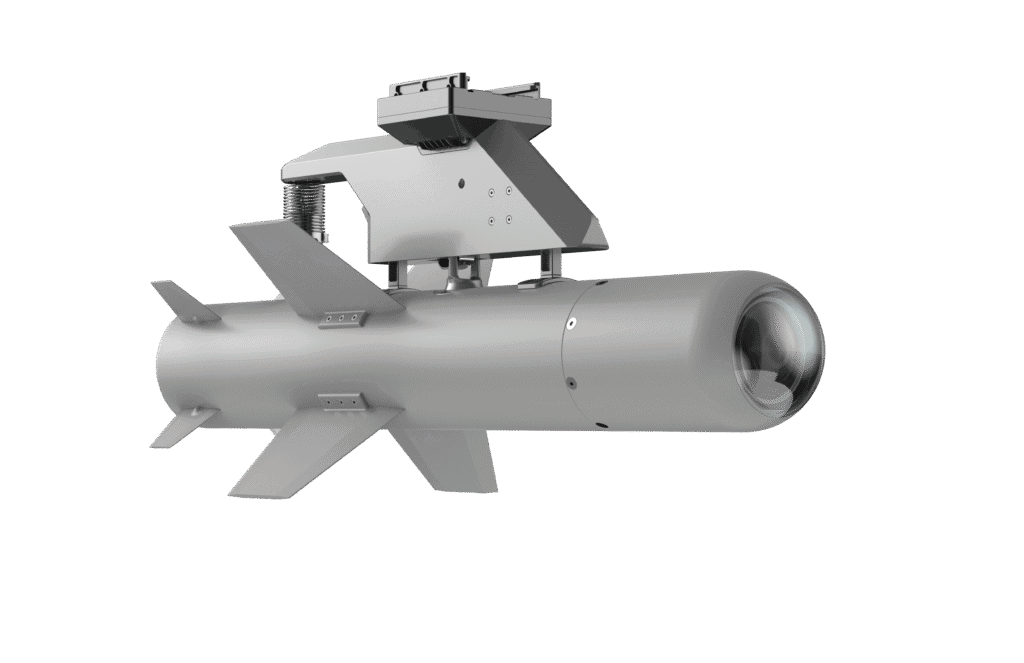

SD-VCM
Visual Cuided Missile Mount Payload
Supported Model:Hammer series
Mount Type: Quick-release interface
Camera: 1080P network HD camera
Effective Range: 15-20m
Net Size: 3m x 3m (1 unit)
Launch Method: Electronic control
Rangefinder Distance: 40m
Drive System: Cylinder-powered
Note: Only control payload provided: gas cylinder is not included
6R-12B AEREA Hammer 6R-12B UAV Ultra Payloads
SD-FVSD New Foldable Smoking System
Supported models: Hammer series
Installation method: quick release interface
Product weight: 2.9kg
Product size: 1460mm • 249mm • 148mm
Support for cartridge type: Chinese standard 52mm smoke cartridge, with multiple color options for the smoke body
Loading quantity: 24
method:Electronic ignition
Network high-definition camera: photo and video recording functions, real-time transmission of 1080P high-definition video images
EMERCiENCV RESPONSE
Supported models: Hammer series/MorphWing-6R
Installation method, quick release interface
Product weight: 2.3kg
Product size: 399mm • 347mm • 353mm
Camera: 1080P network high-definition camera
Effective broadcasting distance:~ 200m. 100m height shouting ground sound of 100 decibels
Play mode: walkie talkie MP3/WAV、TTS
Call mode: recorded call, microphone real-time call
Supported models: Hammer series/MorphWing-6R/Hiker-8B series
Stabilization system: three-axis
Product weight: 1.8KG
Product size: 203mm • 175mm • 272mm
Configure a miniature low light FPV camera Brightness: ≥ 7000 lumens
Lighting range: ≥ 200m
Light source adjustment modes: low light/high light/burst flash. etc
Supported models Hammer series/MorphWing-6R/Hiker-8B
Installation method: quick release interface
signal transmission method: wired/wireless
100m high signal coverage radius~ 20km
Flexible IP networking, network selection Includes city network. private network. and autonomous network
Supports digital DMR and analog communication protocols
Single high gain antenna completes bidirectional communication
Aircraft battery power supply
Supported models: Hammer series/MorphWing-6R/Hiker-8B/Hiker-4B
Installation method: quick release interface
Support, Composite gas detector
Types of gas monitoring:>480 (optional)
of gas sensors to be tested: 6 types PM2.5 sensor, fixed temperature
and humidity sensor
Real time transmission of gas collection data
Photo and video recording function. real-time transmission of high-definition video images
Power Supply· Aircraft Battery
6R-12B AEREA Hammer 6R-12B UAV Ultra Payloads
AEREA Hammer 6R-12B UAV Ultra Payloads
Applicable Payload Type: Transportation. supply, rescue and support
Supported models: 6R-12B
Installation method: quick release interface
Product weight: 5KG
Product size: 539mm • 268mm • 255mm
Aiming angle: downward view network high-definition camera. real-time feedback monitoring of high-definition video images during delivery process
Placement weight: ~ 15KG. single bay~ 5KG
Storage space: 3 compartments. with removable compartments and various forms of internal storage space. The volume of the container can be defined within a limited range according to the size and demand of the object
Delivery method: Ground station control. automatic opening and delivery in the air
Delivery materials: flyers. tools. communication equipment. first aid kits, gas masks. and other supplies
Supported models:Hammer Series
Installation method: quick release interface
Product weight: 3.6KG
Product size: 330mm • 250mm • 195mm
Cable length: 50m
Aiming angle: downward view network high-definition camera. real-time feedback monitoring of high-definition video images during delivery process
Weight: 2KG-15KG
Delivery method: Non landing tethered system. non-destructive delivery by UAV. automatic hook release upon contact with the bottom. emergency rescue wire cutting. manual control. automatic control. deceleration protection
Delivery materials: plasma. tools. communication equipment. portable stretchers. small medical equipment. first aid kits. gas masks. precision instruments. food and other supplies
